New For 2016
Lumber Wizard 4 Laser Line
$149.95


Increased Depth Plus Laser Indicator


The New LUMBER WIZARD 4 Laser Line
With Deeper Detection, Laser Line Indicator and More Precise Tuning



Depending on temperature and humidity
it may take a few times to tune.


Please be sure to store your detector in a warm place.
Avoid allowing it to be stored below 40 degrees!


Precision Metal Detector For Locating Nails, Screws
And Other Metal Inside New and Recycled Wood.


Our Most Powerful Woodworking Detector
Instantly Locates Metal Inside Recycled Wood, New Wood or Timber

Lumber Wizard 4 Tuning Instructions


Fine Tuning Adjustment: If your Lumber Wizard 4 continuously beeps, has alternating red/green flashing lights, or doesn’t detect, the unit may need a fine tuning adjustment.

Tuning and Operating Instructions:

1.Turn the unit on then depress the sound button.

2. Adjust the tuning screw to the far left, unit should beep constantly.

3. Very slowly turn the tuning screw to the right, stop turning as soon as the unit stops beeping.

4. The green light should flash every 3.5 seconds.


5. Turn off and back on.

 The green light should flash every few seconds.
If alternating Green and Red Lights Flash Tuning Is Not exact so try again.
Test detection with a small metal object. Red light will illuminate and unit will beep when metal is detected.

The exact tuning is vital, especially the turning slowly and stopping at exact point where beep stops. It's a small area.


Once this is done the unit should stay tuned. If not tune again and be as precise as possible.

Occasionally the units need re-tuning if the temperature of humidity drop a lot.


Temperature Limitations: The Lumber Wizard 4 should never be stored in temperatures below 40 degrees or in damp or extremely humid or moist environments. Store indoors!

Please Note: When Tuning It Is Vital To Turn The Tuning Screw Starting At Far Left Rotation (unit will beep constantly) Then Turn Very Slowly To The Right And Stop Right At Point Where Beeping Stops.
Also Ensure Battery Has At Least 8.4 Volts.

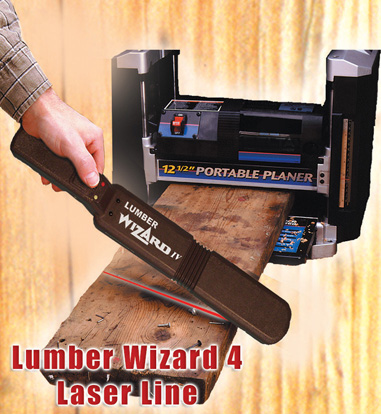

Lumber Wizard 4 Laser Line
Woodworking Metal Detector Review by Tom Hintz at NewWoodworker.com


See Additional Tech Support For
Lumber and Little Wizard





A Powerful Metal Detector Designed
Specifically For Wood Workers!

The New LUMBER WIZARD 4 Laser Line is the latest version of Wizard Industries' flagship woodworking metal detector. A powerful precision hand-held metal detector designed specifically for woodworkers, It helps detect small metal objects hidden inside new or used lumber. The new version features easier one-handed use, with automatic calibration every time the unit is turned on, and better false-positive rejection. Undetected nails, screws or other metal fragments can damage expensive jointer, planer and saw blades. Flying metal can also cause serious injury. Easy to use, the LUMBER WIZARD 4 Laser Line Metal Detector helps woodworkers prevent equipment damage and personal injury. The unit includes a vibration alert, allowing use of the LUMBER WIZARD 4 Laser Line in noisy workshops. The LUMBER WIZARD 4 Laser Line has received rave reviews from woodworkers and magazines across the country, and the new version is even better!

The most powerful woodworking metal detector made.

Dimensions: Length 15 in., Width 3-1/8 in., Height 1-1/8 in. Weight: 13 oz.

Detects nails, screws, wire, bullets and other metal objects buried inside of recycled wood.


Types of Metal Detected: Responds equally well to all types of metal, steel, stainless steel, zinc, magnesium, and aluminum. Locates, nails, screws, staples, tacks, bullets, wire and other small metal objects that can destroy or damage planer, jointer and saw blades.

Electronics: Unit operates with an automatic tuning transmit/receive circuit.

Operating Frequency: 13 kHz / 6,600 Hz.

Power Requirements: One nine volt battery; standard alkaline, Typical battery life is eighty hours.

Switch: On / Off and stay on switch.

Alarm Indicators: Piezo tone beeper and LED RED light indicator are used to indicate the presence of metal.

Low Battery Indication: When battery drops down to 6.0 volts the unit operates with a warble tone and flashing light instead of the normal steady tone and light indicating a low battery. The unit will operate properly as the battery drops well below 5 volts. Once below 3 volts units will emit constant beep tone until unit shuts off.







Built by Wizard Distribution July, 2016.
